F-16 Ultimate DIY Builders Bundle

The Ultimate F-16 Builder’s Bundle

Bring your Viper cockpit to life with this exclusive package combining the ACES II Ejection Seat Plans, the F-16 Cockpit Plans, the High-Fidelity F-16 HUD, and the F-16 Console Panels files. Together, they form a complete, high-fidelity foundation for any serious flight-sim build designed for CNC fabrication, 3D printing, and practical home workshop construction.  This bundle saves you 15% over buying these files individually.

A Seamless Fit

All projects were engineered to integrate naturally, giving you a consistent design language, accurate proportions, and a builder-friendly workflow. Whether you’re crafting a dedicated sim pit or elevating your man cave, this bundle sets the stage for an immersive, authentic experience.

What You Get

ACES II Ejection Seat Plans
A precision-modeled replica of the iconic F-16 seat, featuring intuitive joinery, adjustable ergonomics, and detailed files ready for CNC-cut plywood, aluminum, or paper templates.

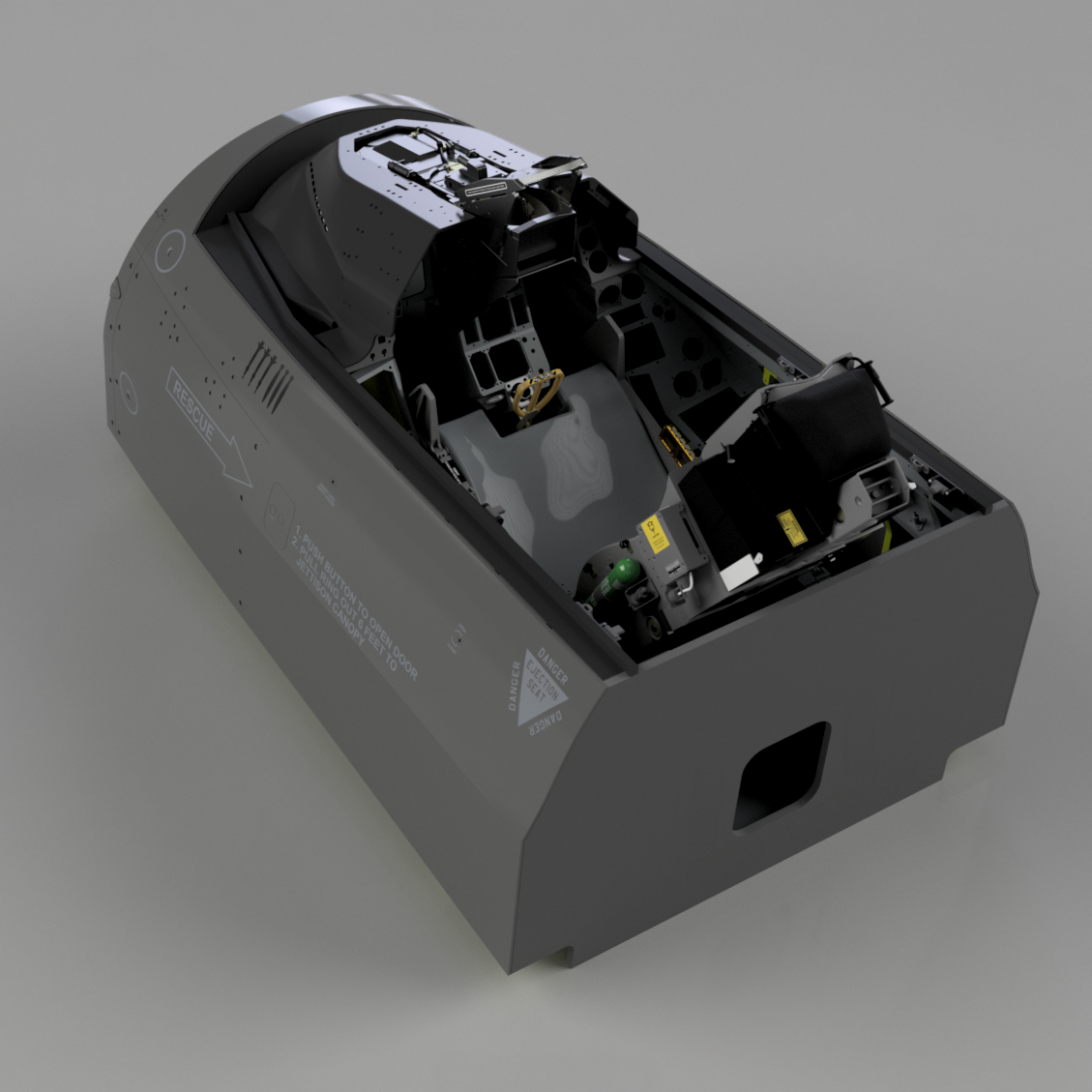

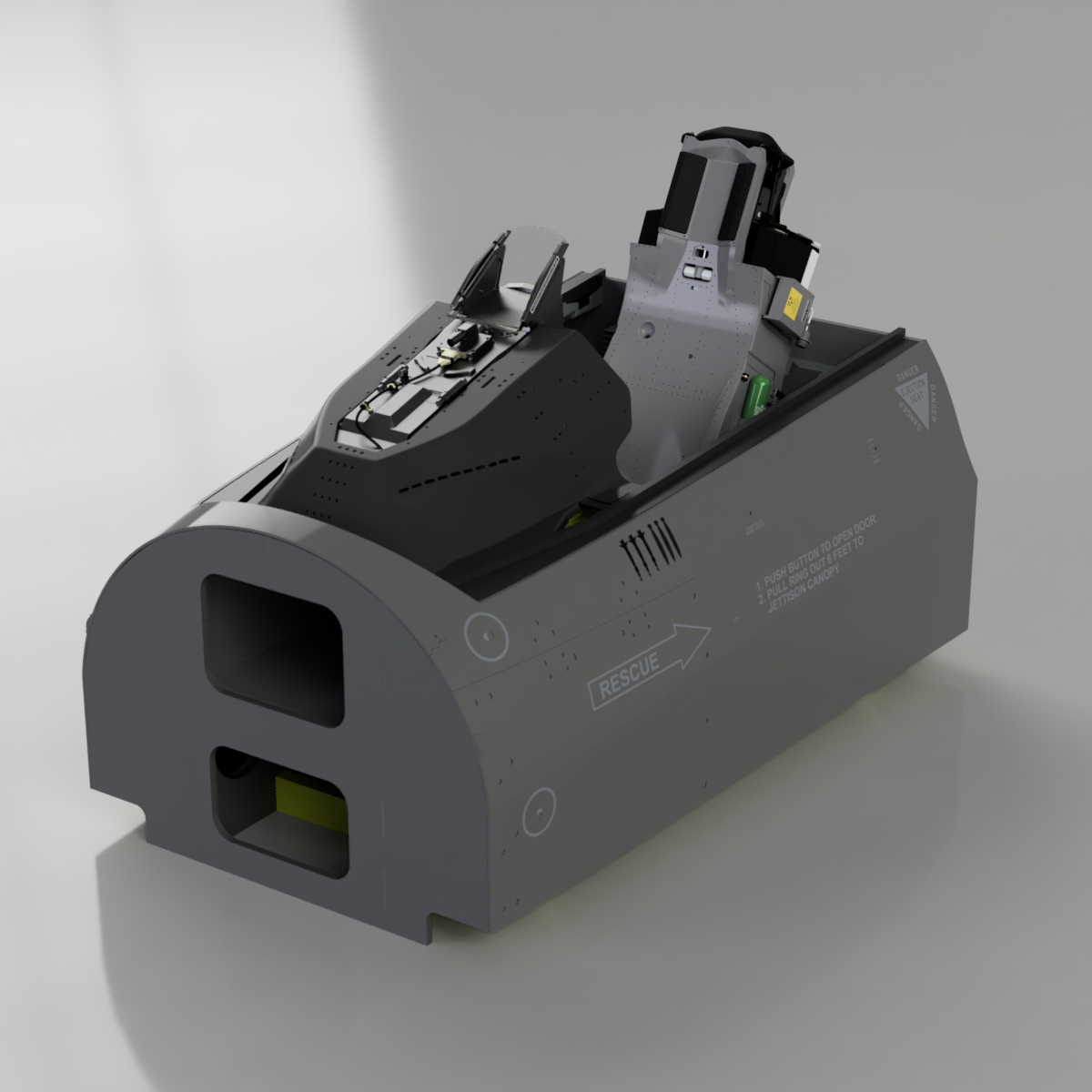

F-16 Cockpit Plans (Version 2)

A modular, extensively upgraded cockpit framework created by Alert 5 Design Studio. Version 2 adds over 50 new 3D-printable components including DZUS rails, modular consoles, hardware details, stowage elements, and more—designed to drop directly into the existing CAD structure.

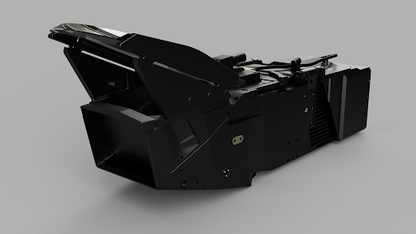

High-Fidelity F-16 HUD

Carefully recreated from three dimensional scans of a real HUD, these highly detailed, highly accurate recreations of the iconic HUD will have you convinced you are in a real Viper cockpit.

F-16 Console Panels

These F-16 console panel files are meticulously designed to reflect real-world aircraft panel standards while remaining practical for home cockpit builders and simulator enthusiasts. Developed using MS (Military Standard) panel layout and manufacturing conventions, the geometry, spacing, and labeling are grounded in authentic aviation practices rather than approximations.

Build Support

A detailed YouTube build walkthrough is available now, with a full illustrated guide in development to support every step of your project.
